Hoyin Ceramic,Flap Discs,Coated Abrasives
Hoyin Ceramic,Flap Discs,Coated Abrasives, Type 27,Trimmable Composite(plastic) Backing
Hoyin Ceramic Flap discs - Max Performance Line:Industrial Grade - Coated Abrasives - Type 27, ,36# 40# 60# 80# 120# 240# Grits Flap Wheels

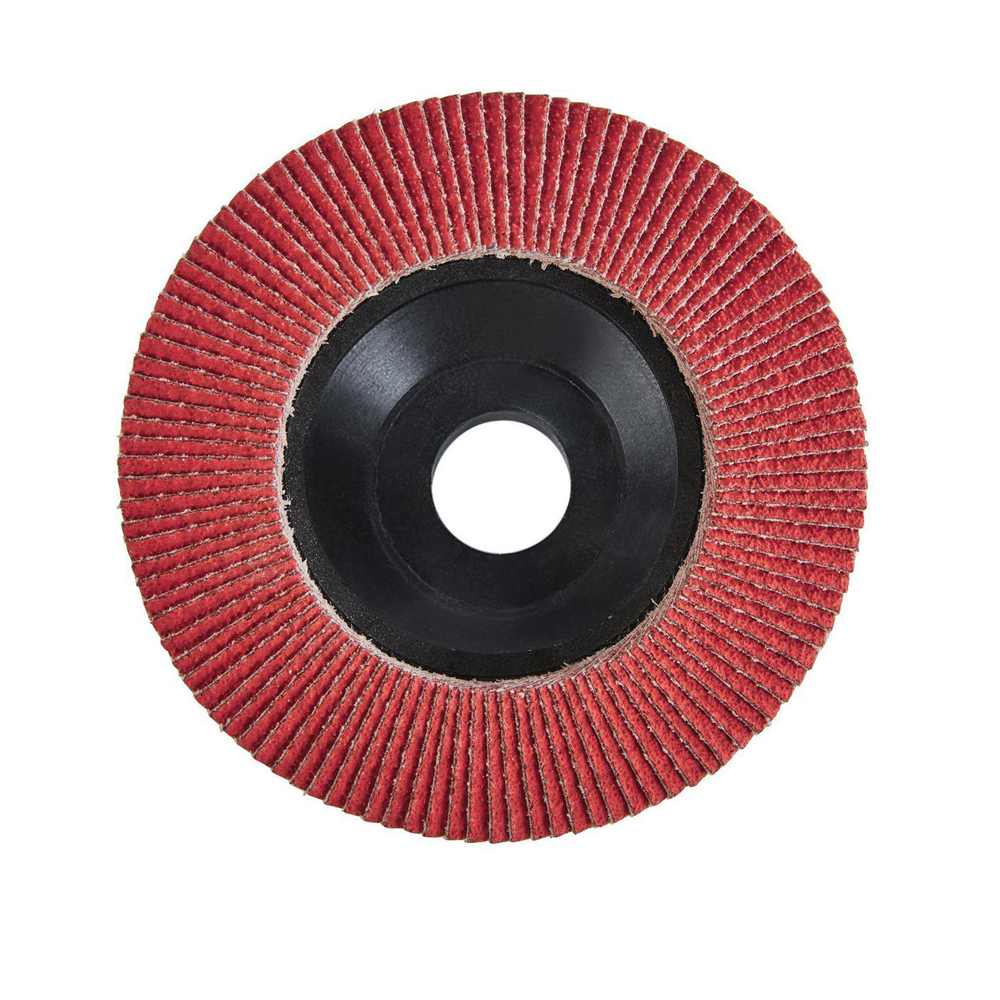

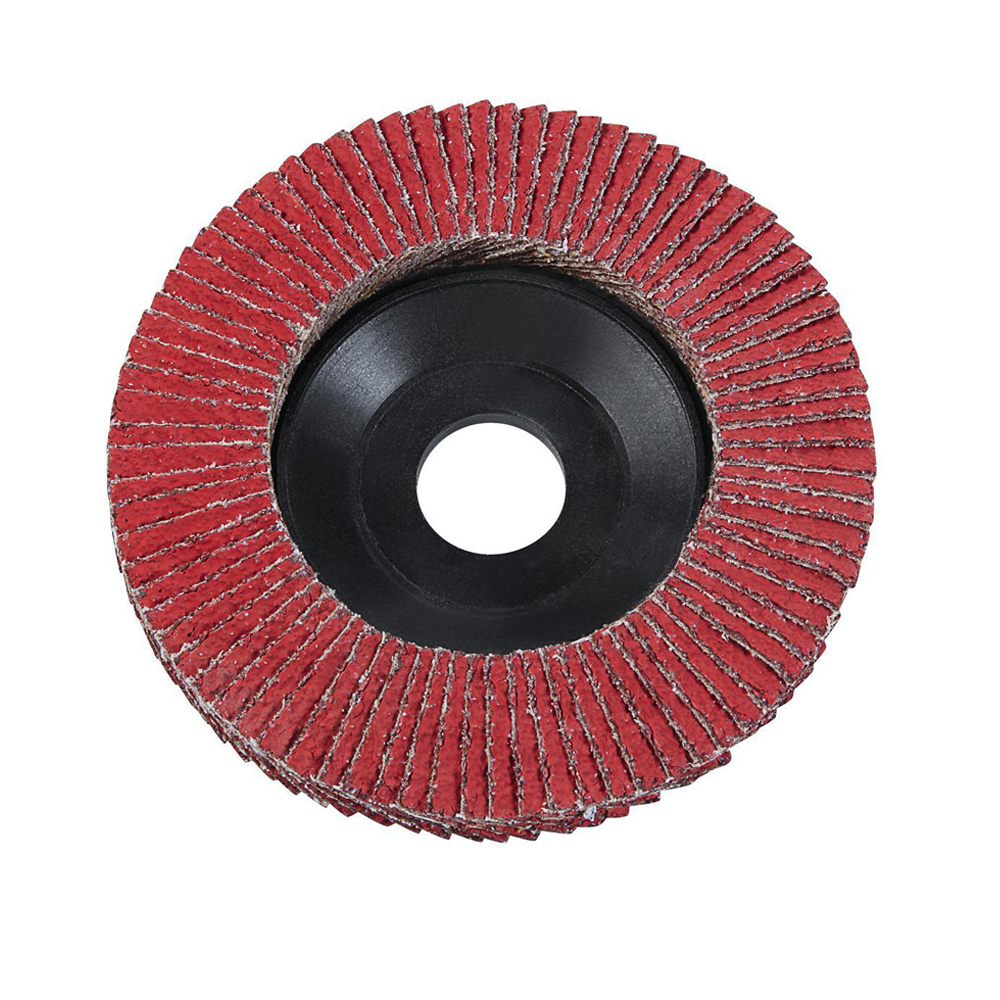

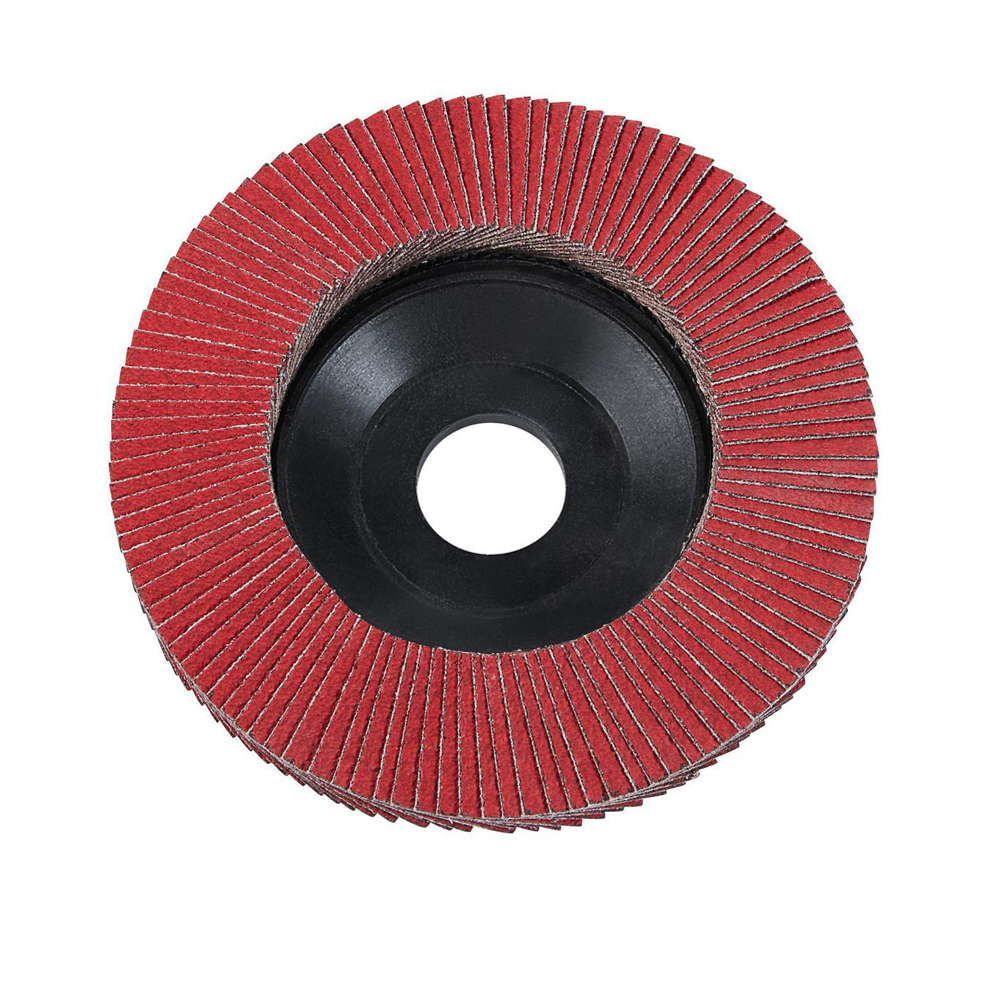

Hoyin Ceramic conical flap discs with Trimmable Composite(plastic) Backing are designed for maximum performance when grinding aluminum, stainless steel and other hard-to-grind metals. A top coat protects high-value parts stainless steel parts from heat discolorization and also prevents loading on soft alloys like aluminum.
Ceramic grains utilize a crystalline structure that is designed with millions of fracture points that self-sharpen at a higher rate than other grains. The result is a high material removal rate, cool grinding, and reduced friction at less pressure which reduces operator fatigue.
The type 27 flat style high density design is conformable to irregular surfaces when grinding between 0° – 15° while the 36# 40# 60# 80# 120# 240# grit abrasive grain is ideal for edge beveling, chamfering, weld grinding, blending, deburring, deflashing, and rust removal with a right angle grinder. This disc offers a metal 5/8In(16mm) 7/8in(22mm), 5/8In - 11 nut that allow for quick changeovers and prevents the disc from sticking to the spindle.
Hoyin Ceramic,Flap Discs,Coated Abrasives with Trimmable Composite(plastic) Backing ,Type 27, 36# 40# 60# 80# 120# 240# Grits
Enhanced Durability
Hoyin Ceramic Grain Coated Abrasives, Flap Discs sanding is crafted from high-strength aluminum oxide, boasting an extended service life, resilience, superior wear resistance, anti-static properties, and effective anti-clogging capabilities.
Hoyin Ceramic,Flap Discs,Coated Abrasives with Phenolic Backing,Type 27 Versatile Application
Hoyin Ceramic Grain Coated Abrasives, Flap Discs find widespread use in metals or wood, perfect for weld reinforcement removal, deburring, polishing, and rust eradication.
Hoyin Ceramic,Flap Discs,Coated Abrasives,Type 27 Trimmable Composite(plastic) Backing Swift & Effective Grinding
Trimmable Composite(plastic) Backing can be trimmed, exposing more abrasive to extend the disc's life and increase its flexibility
The trend of utilizing Trimmable Composite(plastic) Backing has gained significant popularity, and one of the key factors contributing to its rise is its trimmable nature. This allows for increased utilization of flaps during work, making Trimmable Composite(plastic) Backing a preferred choice.
Hoyin Ceramic,Flap Discs,Coated Abrasive with Trimmable Composite(plastic) Backing Backing Ease of Use
The Type 27 angle design facilitates edge and corner grinding, making it excellent for surface sanding and working on welded seams at angles ranging from 0 to 15°.
The Type 27 flap discs excel in its application to flat surfaces, making it a popular choice for tasks such as polishing, finishing, and blending. Furthermore, a significant proportion of individuals prefer the Type27 for their flap wheels.
P Max Performance Line:Industrial Grade Type 27 Type 29 Trimmable Composite(plastic) Backing
Diameter(inch/mmP) | Arbor Type | Grit | Max. R.P.M. | Wheel Type | Item# |
4In(100mm | 5/8"(16mm) | 36# 40# 60# 80# 120# 240# | 15,000(70m/s) | Type 27 | 60008 |
4-1/2In(115mm) | 7/8"(22.2mm) | 36# 40# 60# 80# 120# 240# | 13,000(70m/s) | Type 27 | 60009 |
5In(125mm) | 7/8"(22.2mm) | 36# 40# 60# 80# 120# 240# | 12,000(70m/s) | Type 27 | 60010 |
6In(150mm) | 7/8"(22.2mm) | 36# 40# 60# 80# 120# 240# | 10,000(70m/s) | Type 27 | 60011 |
7In(180mm) | 7/8"(22.2mm) | 36# 40# 60# 80# 120# 240# | 8,600(70m/s) | Type 27 | 60012 |
- Industry Standard::
- ANSI B7.1,EN12413
- Application::
- Grinding
- Backing Plate Material::
- Trimmable Composite(plastic)
- Brand::
- Hoyin
- Commodity Code::
- 6805 30 1000 - Coated Abraisves -Flap Discs
- Compatible Tool::
- Right Angle Grinder
- Country of Origin::
- China
- Diameter::
- 4in(100mm),4-1/2in(115mm),5in(125mm),6in(150mm),7in(180mm)
- Flap Density::
- Standard Desnsity
- Grain Type::
- Ceramic
- Grit::
- 36,40,60,80,120,240
- Industry::
- Fabrication
- Material Application::
- Steel,Stainless Steel,Aluminum Armored Steel,High-Nickel Alloys Incone,Titanium Tool Steel
- Maximum RPM::
- 15000,13000,12000,10000,8600
- Product Type::
- Flap Disc - Hoyin Ceramic
- Wheel Type:
- Type 27
